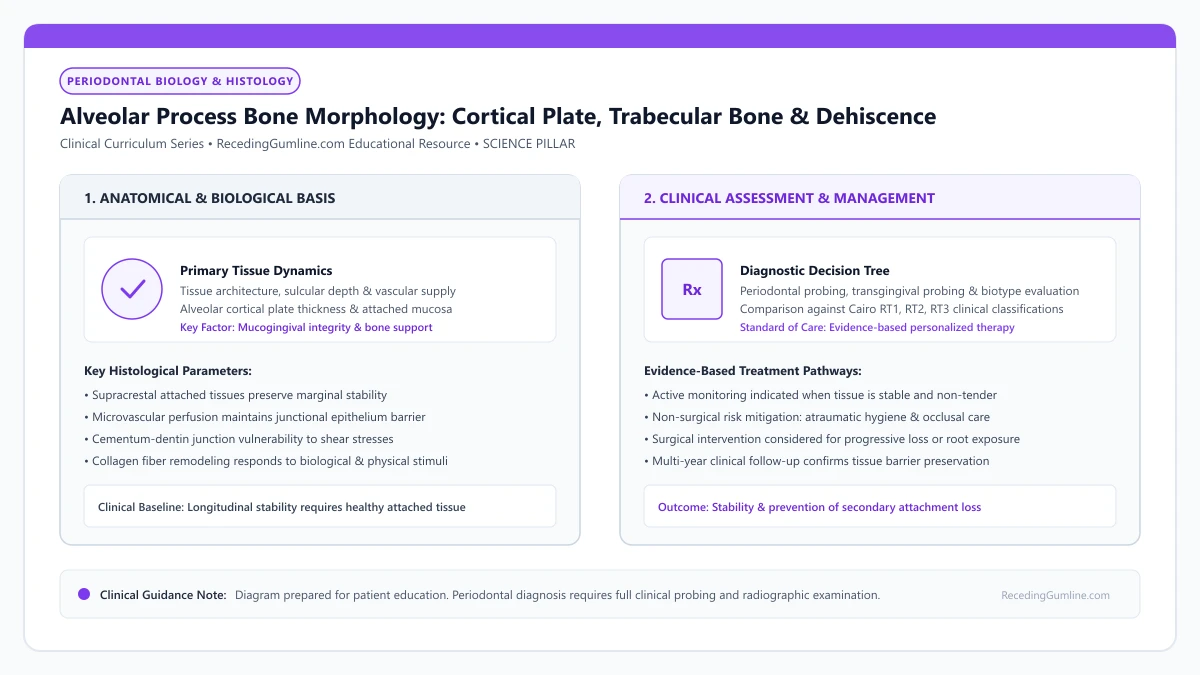

Alveolar Process Bone Morphology: Cortical Plate, Trabecular Bone & Dehiscence

The alveolar process is composed of three distinct bone compartments. The outer boundaries consist of facial and lingual cortical bone plates, made of dense, compact lamellar bone covered by vascular periosteum. Between these plates lies the trabecular (cancellous) bone—a spongy network of marrow spaces.

Lining the tooth socket itself is the alveolar bone proper (also called bundle bone or cribriform plate). This thin layer of bone is perforated by hundreds of microscopic Volkmann's canals that carry blood vessels into the PDL. On dental x-rays, the bundle bone appears as a continuous, radio-opaque white line known as the lamina dura.

The alveolar process consists of the alveolar bone proper (bundle bone lining the socket) and the supporting alveolar bone (facial and lingual cortical plates surrounding central trabecular cancellous bone). The thickness of the facial cortical bone varies dramatically depending on tooth position and individual skeletal anatomy.

In human anatomy, the facial cortical plate covering anterior teeth (incisors, canines, and premolars) is remarkably thin. In over 70% of healthy individuals, this bone plate measures under 0.8 millimeters, and frequently less than 0.3 millimeters near the crest.

Because bone requires its own microvascular network to stay alive, a bone plate thinner than 0.5 mm contains zero internal Haversian blood vessels. It survives entirely on blood diffusing from the outer periosteum and inner PDL. Any minor insult—such as aggressive brushing, orthodontic tipping, or slight plaque inflammation—cuts off this blood supply, causing the bone plate to vanish.

In anterior teeth and prominent canine regions, the facial bone plate is frequently paper-thin (often less than 0.5 mm) or completely absent in areas of anatomical dehiscence. This absence of cancellous marrow limits the intrinsic microvascular blood supply available to support overlying soft tissues.

A fundamental biological principle in periodontics is that soft tissue follows bone. Under healthy physiological conditions, the alveolar bone crest sits 1.5 to 2.0 mm apical to the cementoenamel junction, and the gingival margin sits 1.5 to 2.0 mm coronal to the bone crest.

When host osteoclasts dissolve the alveolar bone crest—whether from periodontitis, mechanical trauma, or tooth flexure—the overlying gingival tissue loses its structural scaffolding. Within weeks to months, the gingival margin collapses downward to re-establish its biological relationship with the new bone level, creating visible gum recession.

When localized bone resorption occurs, the height and morphology of the interproximal bone crest dictate the regenerative potential of the defect. Preserving interdental bone architecture is the absolute prerequisite for maintaining the interdental soft-tissue papillae and aesthetic gingival contours.

The alveolar bone housing comprises two distinct histological types of bone: the inner alveolar bone proper (bundle bone or cribriform plate) and the outer cortical plates (lamellar bone).

Bundle bone lines the inner tooth socket and is named for the dense bundles of Sharpey's fibers embedded within it. Crucially, bundle bone is a tooth-dependent structure; its embryological development and vascular nutrition depend entirely on the presence of the periodontal ligament.

When a tooth is extracted or when severe recession destroys the coronal PDL, the bundle bone undergoes rapid osteoclastic resorption. Because the facial cortical plate in anterior teeth is composed almost entirely of thin bundle bone, any loss of attachment results in permanent loss of facial bone height.

Anatomical variations in alveolar bone architecture strongly influence recession susceptibility. The two most significant osseous defects are fenestrations and dehiscences.

A fenestration is an isolated "window" defect in the cortical bone plate where the root surface is exposed, but the marginal bone crest remains fully intact coronally. In contrast, an alveolar dehiscence is a continuous V-shaped or U-shaped defect where the marginal bone crest is missing, leaving the root covered only by periosteum and soft tissue.

Clinical studies demonstrate that dehiscences are present in up to 20% of teeth in patients with thin phenotypes. A pre-existing dehiscence leaves the overlying gingiva unsupported, predisposing the site to sudden, extensive recession if subjected to minor trauma.
