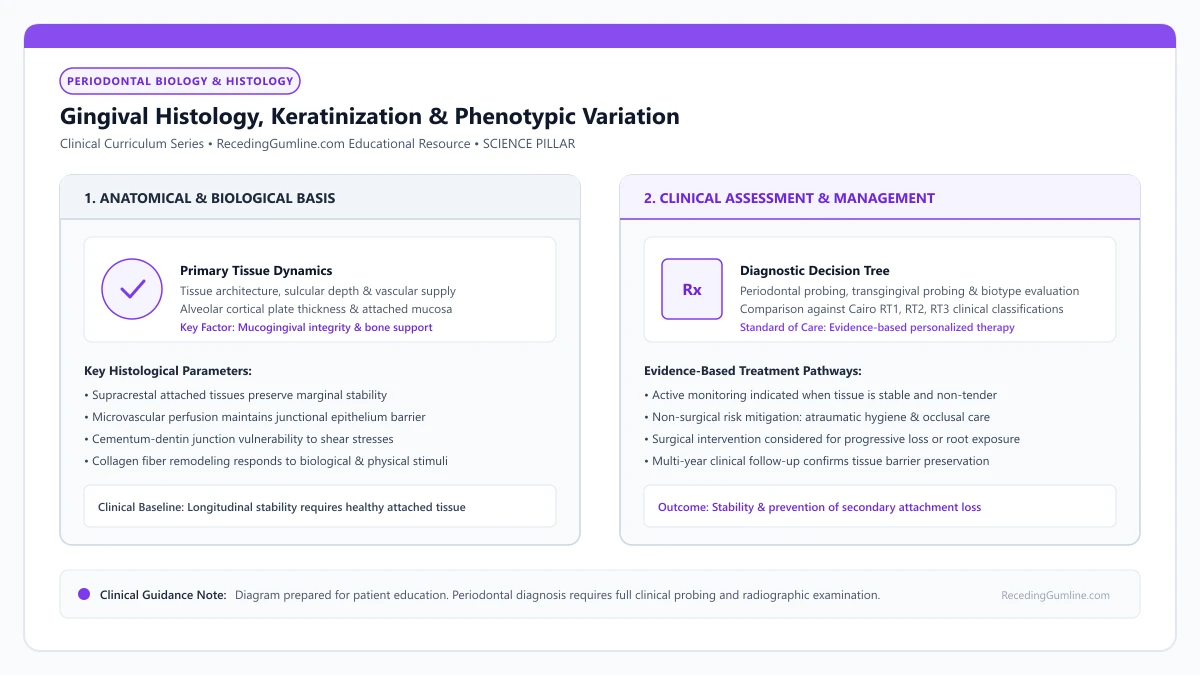

Gingival Histology, Keratinization & Phenotypic Variation

Histologically, the gingival epithelium is divided into three anatomically distinct zones: the Oral Epithelium (OE), the Sulcular Epithelium (SE), and the Junctional Epithelium (JE). The Oral Epithelium covers the visible outer surface of the free and attached gingiva, extending from the gingival margin to the mucogingival junction.

The OE is a stratified squamous epithelium that is predominantly parakeratinized (retaining pyknotic nuclei in superficial cells) or orthokeratinized. Dense intracellular keratin tonofilaments and membrane-coating granules provide remarkable resistance to physical tearing and chemical penetration.

In contrast, the Sulcular and Junctional Epithelia are completely non-keratinized. The Junctional Epithelium forms the critical biological collar that attaches soft tissue directly to mineralized tooth structure (enamel or cementum). Uniquely, the JE attaches via hemidesmosomes and an internal basal lamina, exhibiting rapid cellular turnover (completely renewing every 4 to 6 days). However, its non-keratinized status leaves it permeable to bacterial endotoxins and vulnerable to mechanical disruption.

The boundary between attached keratinized gingiva and movable alveolar mucosa is demarcated by the Mucogingival Junction (MGJ). Attached gingiva is firmly bound to the underlying alveolar periosteum by dense collagen bundles, preventing movement during lip and cheek activity. Its surface displays prominent stippling produced by epithelial rete pegs projecting deeply into connective tissue papillae.

Apical to the MGJ lies the Alveolar Mucosa. Histologically, the alveolar mucosa is thin, non-keratinized, rich in elastic fibers, and loosely attached to underlying structures. It lacks structural rigidity and moves freely with facial expression.

When an individual has an adequate band of attached gingiva, muscular movement of the lips and cheeks is completely absorbed at the MGJ. However, if recession progresses past the MGJ, the fragile alveolar mucosa forms the marginal collar. Lacking keratinization and periosteal anchorage, the margin is easily pulled away from the tooth during speech and eating, accelerating rapid, uncontained tissue loss.

A central question in periodontal clinical practice is determining the minimum width of attached keratinized tissue required to maintain periodontal health. In a landmark 1972 clinical study, Niklaus Lang and Harald Löe addressed this question by evaluating 215 anterior teeth over prolonged intervals.

Lang and Löe demonstrated that all sites with less than 2.0 mm of keratinized gingiva (corresponding to less than 1.0 mm of firmly attached gingiva) exhibited persistent clinical inflammation and bleeding, even when oral hygiene appeared clean. Conversely, sites possessing 2.0 mm or more of keratinized tissue maintained complete health without inflammation.

While modern periodontists recognize that extraordinary oral hygiene can maintain health with narrower bands, sites with less than 1.0 mm of attached gingiva are clinically categorized as "mucogingival defects." These sites possess an elevated vulnerability to progressive recession when subjected to toothbrush abrasion, restorative crown margins, or orthodontic tooth movement.

The 2017 World Workshop on the Classification of Periodontal Diseases updated the classic term "biotype" to "periodontal phenotype," emphasizing that clinical tissue characteristics reflect both genetic inheritance and environmental influences. The periodontal phenotype encompasses three synchronized parameters: Gingival Thickness (GT), Keratinized Tissue Width (KTW), and Bone Morphotype.

A Thin-Scalloped Phenotype is characterized by a gingival thickness of less than 1.0 mm (verified clinically when the shadow of a periodontal probe is visible through the sulcular margin), a narrow band of keratinized tissue, slender triangular crowns, and delicate, paper-thin labial alveolar bone. This phenotype possesses minimal physical resistance; when challenged by trauma or plaque, it recedes rapidly.

A Thick-Flat Phenotype features dense, fibrous gingiva measuring greater than 1.0 mm in thickness, a broad band of keratinized tissue, square tooth crowns, and thick, flat alveolar bone with pronounced cortical plates. This phenotype resists mechanical abrasion; when challenged by disease, it responds with deep periodontal pockets and intrabony defects rather than gingival recession.
